LONG FRAME ( 1/4" ) MODULAR 3 ROW JACK PANELS
210
JACK PANELS
PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information
LONG FRAME (1/4") MODULAR 3 ROW JACK PANELS
Four series of cross-connect jack panels are available in 19"
and 23" widths. Individual modules are easily dismounted
from the front. On special order, panels can be supplied with
a variety of standard telephone jacks.
SERIES JP312000 AND JPD312000
2.655" x 19" size for console, rack or control panel mounting.
Mounts 24 twin jacks and 24 single jacks. Openings are on
.625" centers in each row. A twin plug fits jacks horizontally
or vertically in same quad. Bottom row has 24 single jacks.
Two Kwik ? -Change designation strips are supplied. Series
JPD31 has pre-drilled and countersunk holes for mounting
vertical designation strips. See “ORDERING”.
SERIES JP322000 AND JPD322000
Same as JP312000 and JPD312000, except 23" wide
(includes 14 inserts which accommodate 28 twin jacks and
28 single jacks).
MODULE INSERTS
Available with 6 holes or blank faces. See “ORDERING”
for colored modules.
SPECIFICATIONS
Panel and Designation Strips: Aluminum alloy,
extruded. Black anodized per MIL-A-8625.
Module Insert: Molded plastic, matte finish. Black standard;
white, red, green, blue or yellow available on special order.
Marking Strip: White matte finish plastic.
Designation Strip Cover: Extruded clear plastic.
Screws: #6-32 x 5/16" PHMS, for jack mounting;
#4-40 x 1/2" phillips FHMS, for module insert mounting.
ORDERING
Order basic assemblies by part number from table. On
special order, various combinations of colored inserts
mounted in basic panels, as well as many types of
complete assemblies are possible. Provide complete
details with your inquiry or order.
Standard mount panels are available with holes pre-drilled
for vertical designation strips, Series DS320. Add prefix “D”
to part number (JPD312000, JPD322000, etc.). Refer to
“DESIGNATION STRIPS”.
Mounting Screws: #6-32 P10725 for jack mounting and
#4-40 P2435 for insert mounting can also be ordered
Part Number
JP312000
JPD312000
JP322000
JPD322000
Description
19" wide x 2.625" high panel with 12 black modules
installed. Two, full width Kwik ? -Change designation
strips are included.
Same as JP312000, except holes pre-drilled for
mounting vertical designation strips at each side.
23" wide x 2.625" high panel with 14 black modules
installed. Two, full width Kwik ? -Change designation
strips are included.
Same as JP322000, except holes pre-drilled for
mounting vertical designation strips at each side.
separately. Contact Switchcraft.

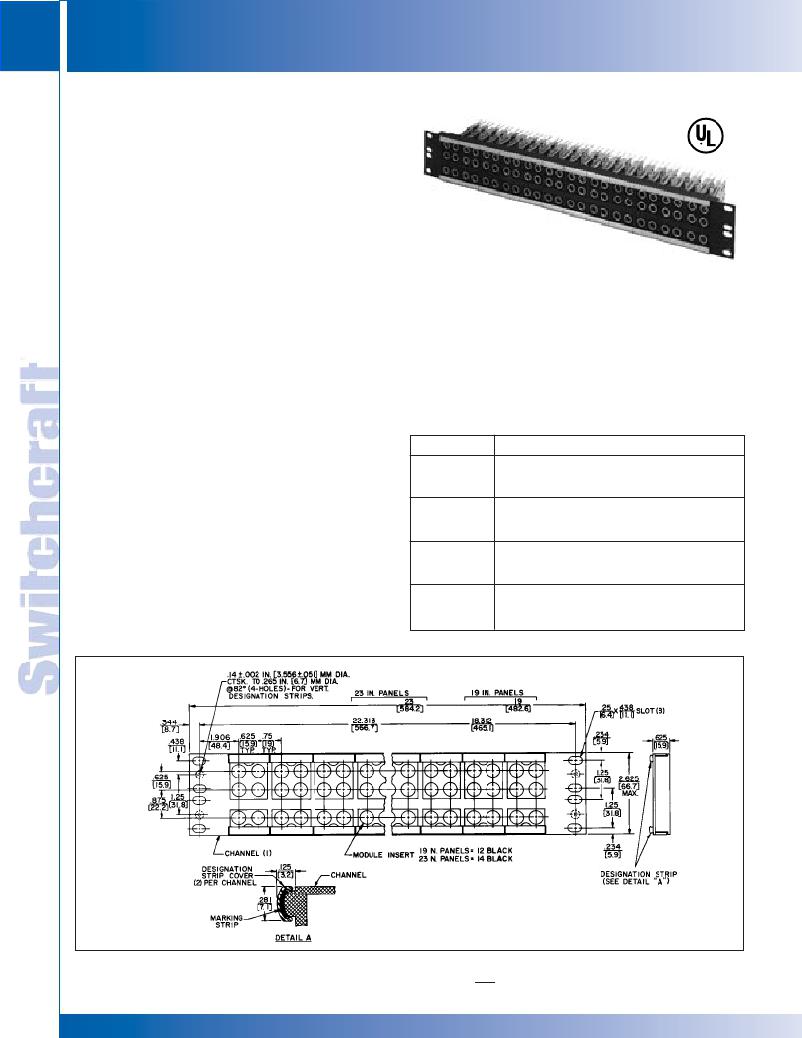

Series JP312000, JPD312000, JP322000, JPD322000
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
